Patented
Telescopic single tele-boom
← Back to catwalks Catwalk
Range 2 Catwalk
Patented telescopic single tele-boom
Telescopic · single tele-boom · hazardous-area
Hydraulic
Closed-loop · belt reduction
ATEX Z2
7.5 m from wellhead
Dual 80 t
Load path · bail-link ears
The catwalk that started the line
The Range 2 is XDR’s original catwalk — the patented telescopic tele-boom design that crews have been deploying alongside XDR rigs for years. It remains in the line for operators who want a proven, simpler footprint, particularly where the well plan doesn’t need the fully integrated Xenon experience of the Range 3.
Features
Engineered to integrate
- 01Patented telescopic single tele-boom design.
- 02Closed-loop hydraulic drive · belt reduction.
- 03Pulsation dampener and Oteco shear relief.
- 04Dual load path 80 t · bail-link ears.
- 05Onsite compressor feed · slip control.
- 06Hazardous area rating: Zone 2 ATEX — 7.5 m from wellhead, 5 m Zone 1.
- 07Spark-arresting muffler with fibreglass-lagged exhaust.
Specifications
The numbers, in detail.
Boom & loads
- Boom
- Patented telescopic · single tele-boom
- Load path
- Dual 80 t · bail-link ears
Drive
- Drive
- Closed-loop hydraulic · belt reduction
- Pulsation control
- Pulsation dampener · Oteco shear relief
Safety & site
- Hazardous area
- Zone 2 ATEX · 7.5 m from wellhead · 5 m Zone 1
- Exhaust
- Spark-arresting muffler · fibreglass-lagged

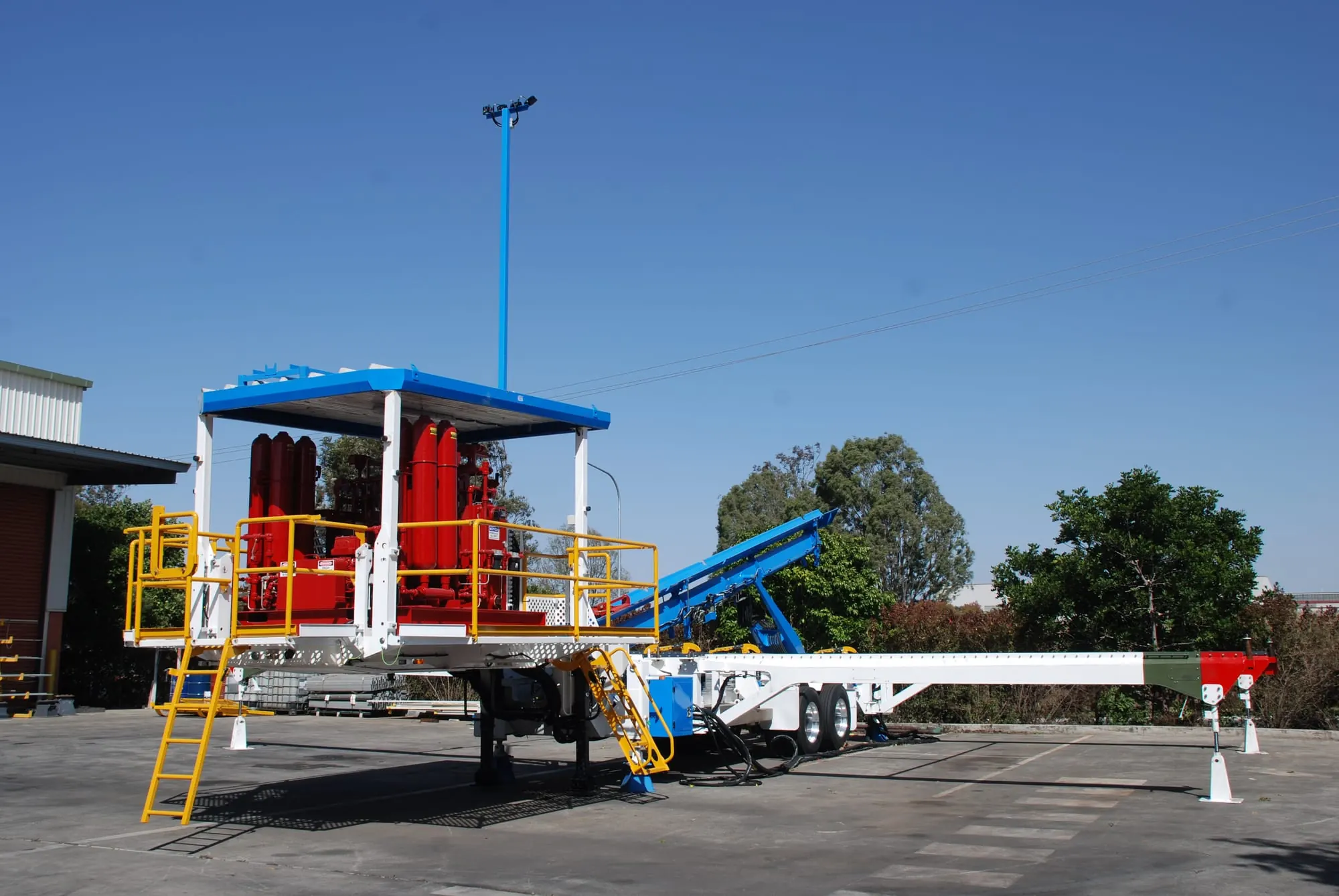

Gallery
In the field.
Talk to us
Spec the Range 2 Catwalk for your operation.
Tell us about the wells you service. We'll come back with a configuration, lead time and a service plan.
