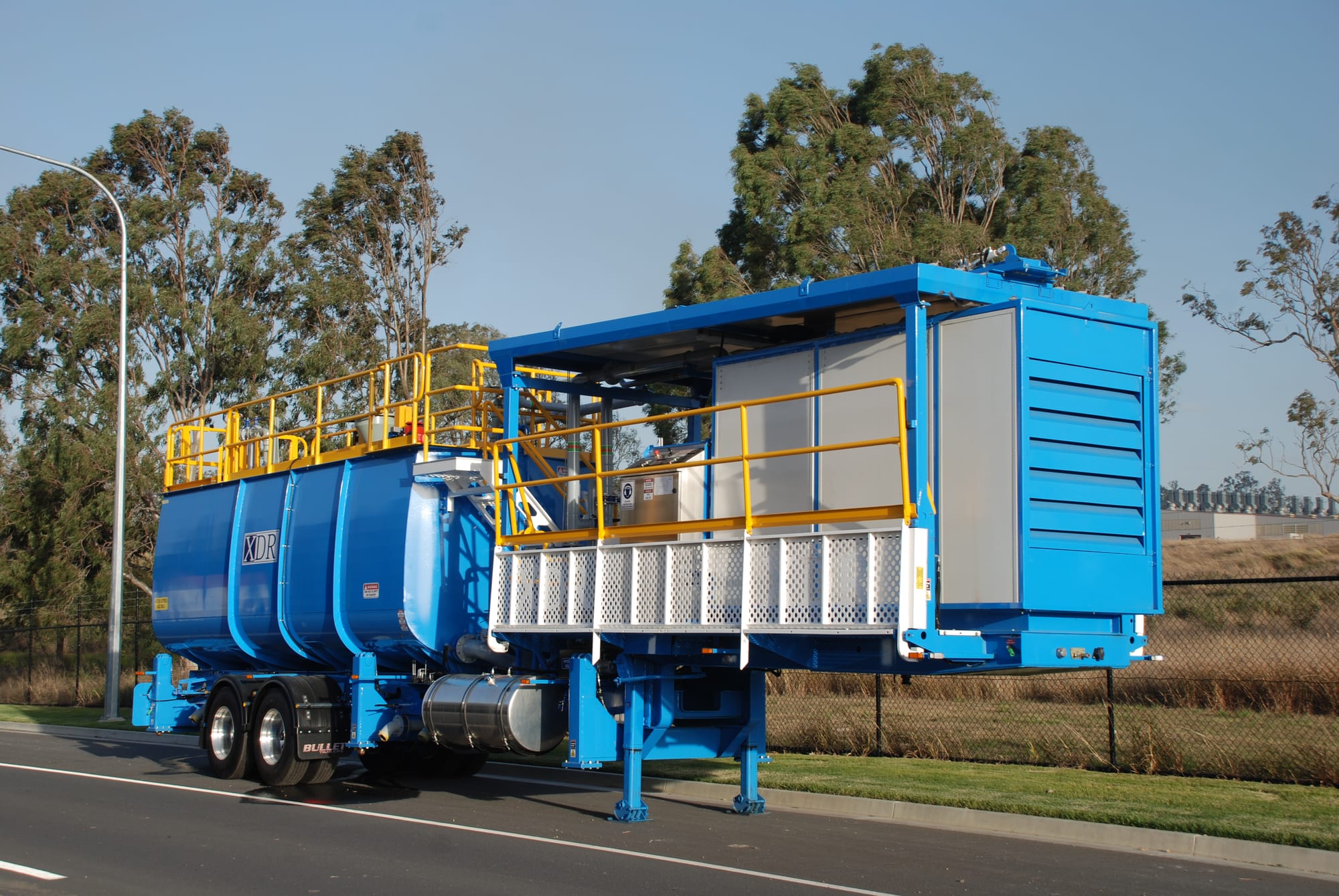

XDR 3060 Mud Trailer
Triplex · closed-loop · Xenon-controlled
Jereh 600S triplex · 4″ plungers
Allison 4700
OFS transmission · PLC gear changes
Xenon
Driller's console integration
Triaxle
HML 22.5 t · Kingpin 12.5 t
A pump that talks to the rig
The XDR 3060 isn’t a third-party trailer with an XDR badge — it’s engineered to be controlled from the rig’s driller’s console, with full PLC valve control, pre-set positions for rapid operational changes, and shared e-stop coverage across the rig, catwalk and trailer.
That’s the XDR pattern: every piece of equipment on the well site is built to behave as one machine.
Features
Engineered to integrate
- 01Engine, transmission and triplex mounted on torque-tube gooseneck structure.
- 02Allison 4700 OFS transmission with PLC-controlled gear changes.
- 03Full PLC valve control with pre-set positions for rapid operational changes.
- 04Suction Y-strainers per charge pump · Marechal IP67 electrical disconnects.
- 05Jet mud guns (2 main + 1 pill) plus Venturi mud mixer/hopper.
- 06Storage for 6× lengths of 2″ 5,000 psi hard line + 6× jack pads.
- 07Complete control from XDR Rig Driller's Console via Xenon.
- 08Spark-arresting exhaust covered in fibreglass thermal lagging.
- 09Hydraulic 20 m × 5,000 psi hose reel for mobile test connection.
- 10Site emergency shutdown: e-stop receivers on rig, catwalk and mud trailer.
Specifications
The numbers, in detail.
Pump
- Triplex
- Jereh 600S horizontal · 4″ plungers
- Drive
- Engine + Allison 4700 OFS transmission
Hydraulic & control
- Valve control
- Full PLC · pre-set positions
- Pulsation dampener
- Yes · Oteco shear relief
- Console
- XDR Xenon — controlled from rig driller's console
Mud system
- Mud guns
- 2× main + 1× pill jet
- Mixer
- Venturi hopper
- Strainers
- Suction Y-strainers per charge pump
Electrical
- Disconnects
- Marechal IP67
- Hazardous area
- ATEX Zone 2 / IECEx — 7.5 m from wellhead
Trailer
- Chassis
- Custom-designed · RVCS compliant
- Axles
- Triaxle · HML 22.5 t · Kingpin 12.5 t

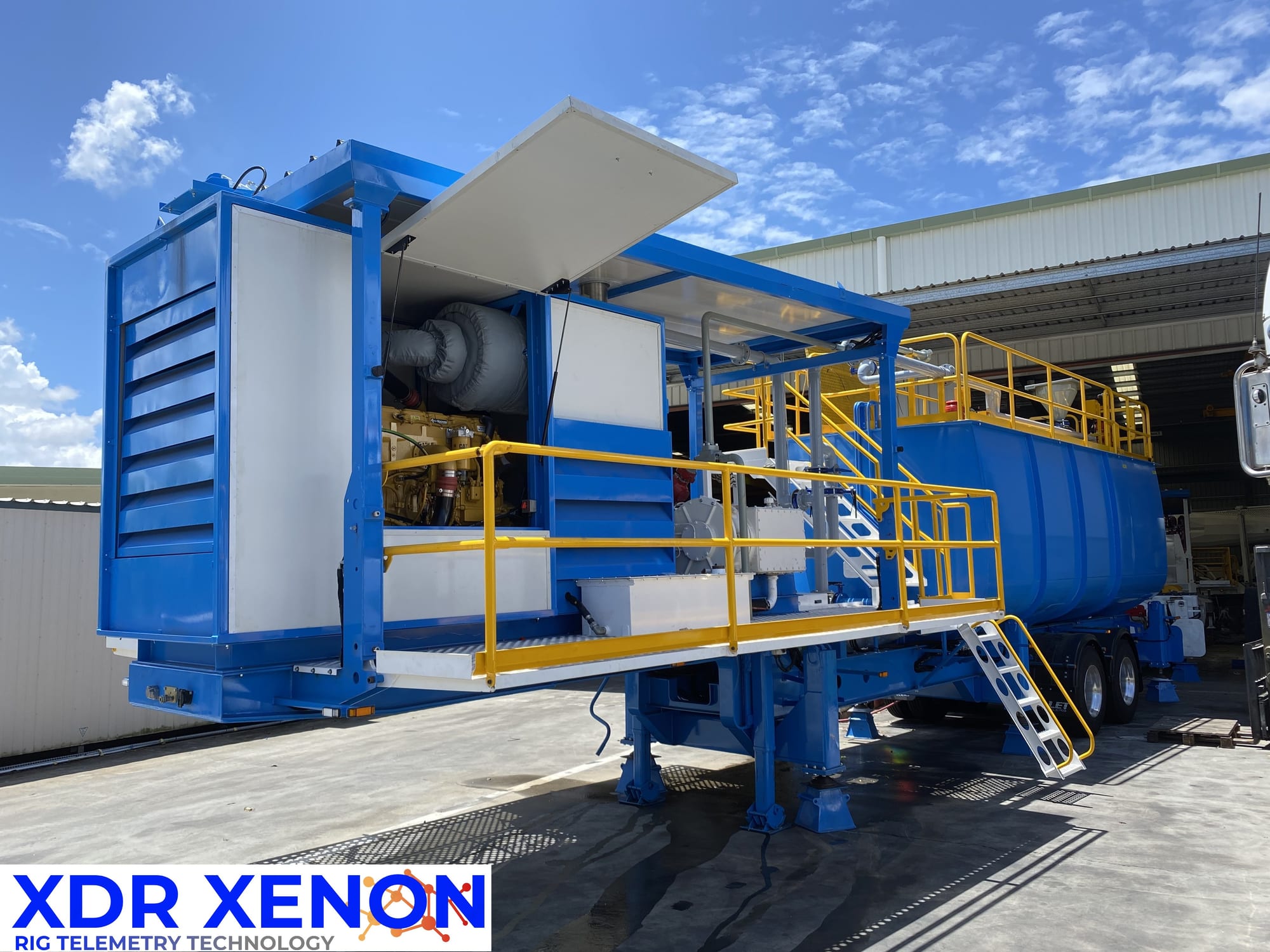

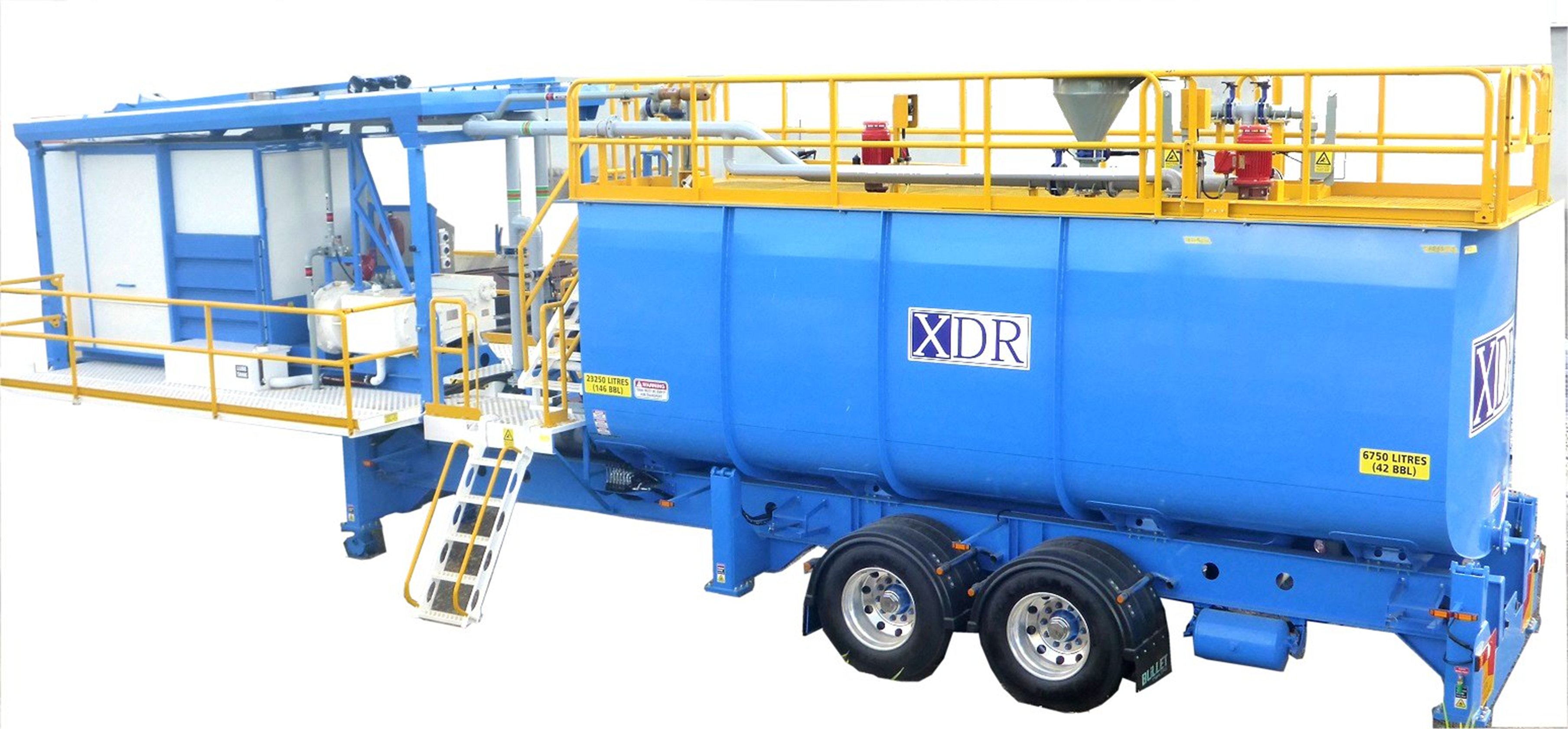

Gallery
In the field.
Talk to us
Spec the XDR 3060 Mud Trailer for your operation.
Tell us about the wells you service. We'll come back with a configuration, lead time and a service plan.
