Technology · IntelliBeam™ · Patented

Rollover risk, visible before it’s hazardous.

XDR's patented stability system. Load-sensing pads beneath every rear jack leg measure compressive ground force in real time. The PLC computes lateral centre-of-gravity and displays it on the HMI — operators see rollover risk developing long before it becomes hazardous.

See it on the rigs → IntelliBeam datasheet →
Patented
XDR proprietary stability system
Live
Centre-of-gravity tracking
4 pads
Load-sensing — one per rear jack
Auto-stop
PLC engages slips at threshold
What it does · Patented

A leading indicator of rollover risk.

Lateral centre-of-gravity is a leading indicator of rollover; subsidence, side loading and wind moments all show up there before any other symptom. IntelliBeam — XDR's patented system — puts that signal on the operator's HMI and ties safety stops directly to it.

  • Continuous lateral centre-of-gravity tracking — ball drifts on a live stability slider.
  • Load-sensing pads beneath every rear jack leg feed the PLC with compressive jack reactions.
  • Normal · Caution · Do Not Go Further — colour-coded boundaries with early audible warnings.
  • Exceed a threshold and the PLC engages slips and commands drawworks to stop and lower.
  • Lateral wind moment is absorbed directly into jack-reaction values — no manual adjustment.

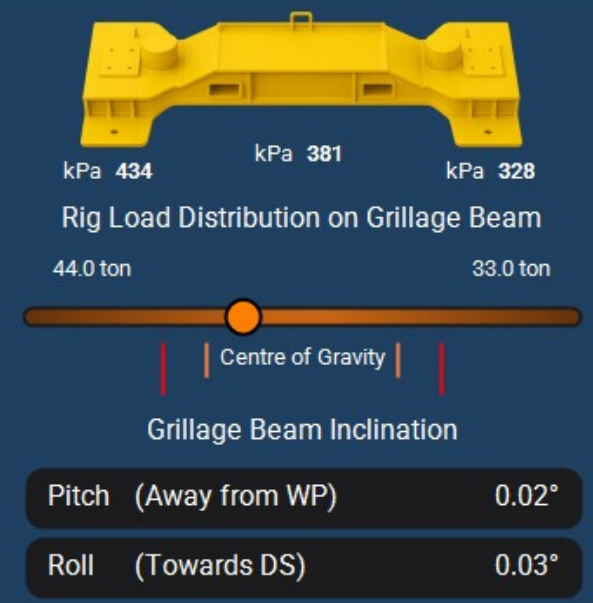

IntelliBeam HMI — load-sensing readouts and stability indicator
Engineering

The full feature set

  • 01Independent grillage inclinometer confirms pitch / roll is level before jacking commences.
  • 02Detects accelerating COG shifts — a leading indicator of ground subsidence or side loading.
  • 03Full 175-point black-box logging — jack reactions, COG, mast loading and operator inputs.
  • 04Tied to Xenon: COG values feed the same telemetry stream as the rest of the rig.
  • 05No manual recalibration needed for wind — moment is absorbed into jack-reaction values directly.
  • 06Standard fitment on the XDR 250 and XDR 160 platforms.
Built into the rig · Patented

IntelliBeam ships with the XDR 250 and 160 platforms.

It's not an aftermarket bolt-on. The load-sensing pads, PLC logic and HMI integration are XDR's patented design — engineered in from the ground up.

See it on the XDR 250 → See it on the XDR 160 →
