Range 3 Catwalk — Hydraulic

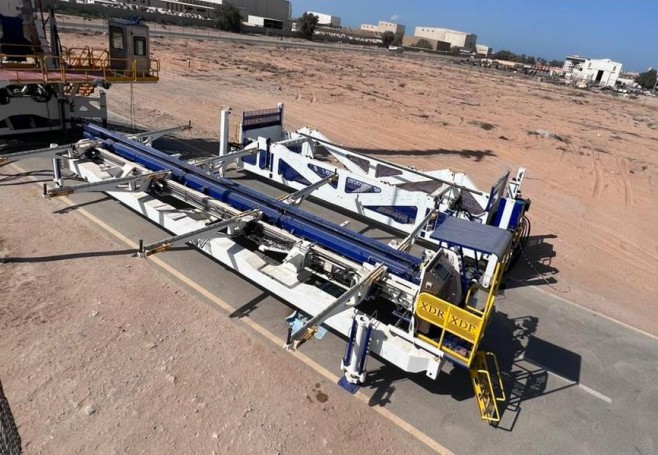

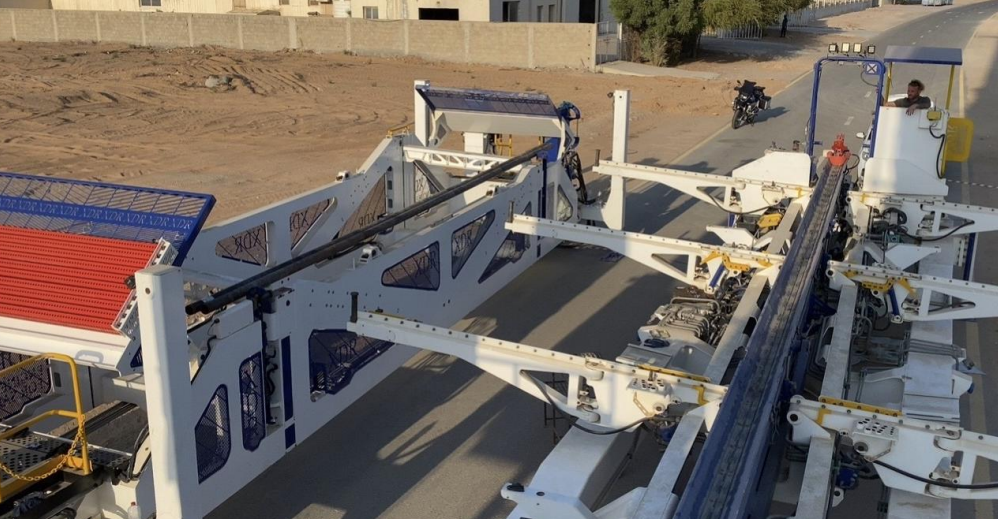

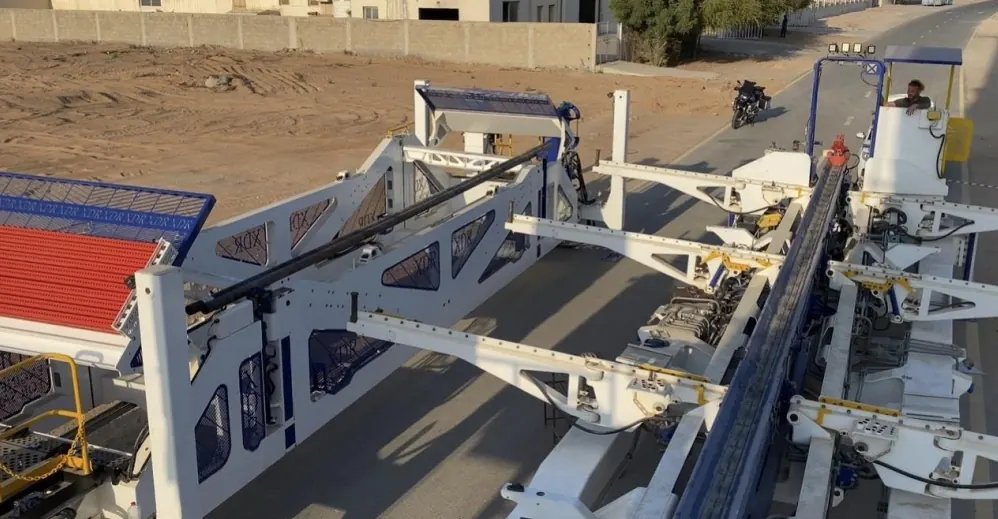

Name: Range 3 Catwalk — Hydraulic
Brand: XDR

Hands-free tubular transfer — IECEx wireless · Xenon-integrated

Hands-free · SIL 2 · Xenon-integrated

Download spec sheet (PDF) ↓ Request a consultation →

80 m/min

Skate / grab travel speed

SIL 2

Safety-Integrity-assessed controls

IECEx

Wireless remote · hazardous-area

Rotating

Trough — better well-centre alignment

A catwalk that’s part of the rig

Most catwalks bring their own engine and HPU and ask the rig to play nicely with them. The Range 3 Hydraulic does the opposite — it’s powered directly by the XDR 250’s PTO and integrated through Xenon, so the operator drives the catwalk from the same console they use to drive the floor.

The result is a tubular-handling system that behaves as one machine with the rig: rotating trough, PLC-controlled stop points, IECEx wireless remote, and SIL-2 control logic — with no separate engine to maintain, fuel or shut down on the well site.

Features

Engineered to integrate

01Powered directly by the XDR 250 rig — no separate diesel engine or HPU on the catwalk.
02Rotating trough with integrated kicker ensures complete tubular control during tripping.
03Self-supporting arms lift without flexing, reducing rod damage.
04User-defined stop points for tripping with PLC-controlled stopping.
05Rotating upper chassis aligns precisely with well centre.
06Interchangeable trough head accepts sucker rods, tubing and casing without tooling.
07Integrates with XDR Rig, Tubular Magazines and Hands Free System via Xenon.
08Safety Integrity assessed control systems — SIL 2 rated.
09Included as standard in the XDR 250 Workover Rig Package.
